Alta X Gen2 (NDAA)

** Shipping March 2026 **

Overview

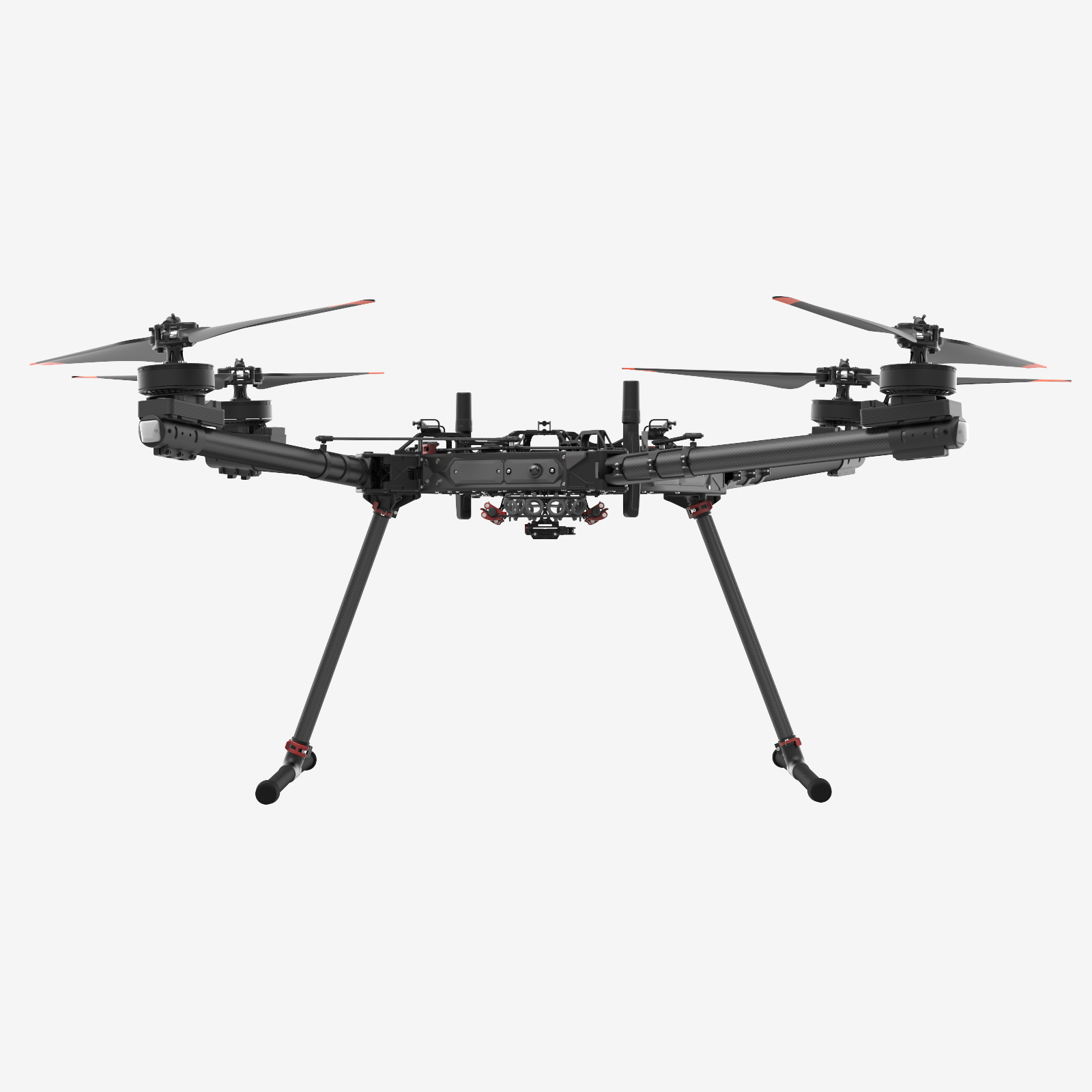

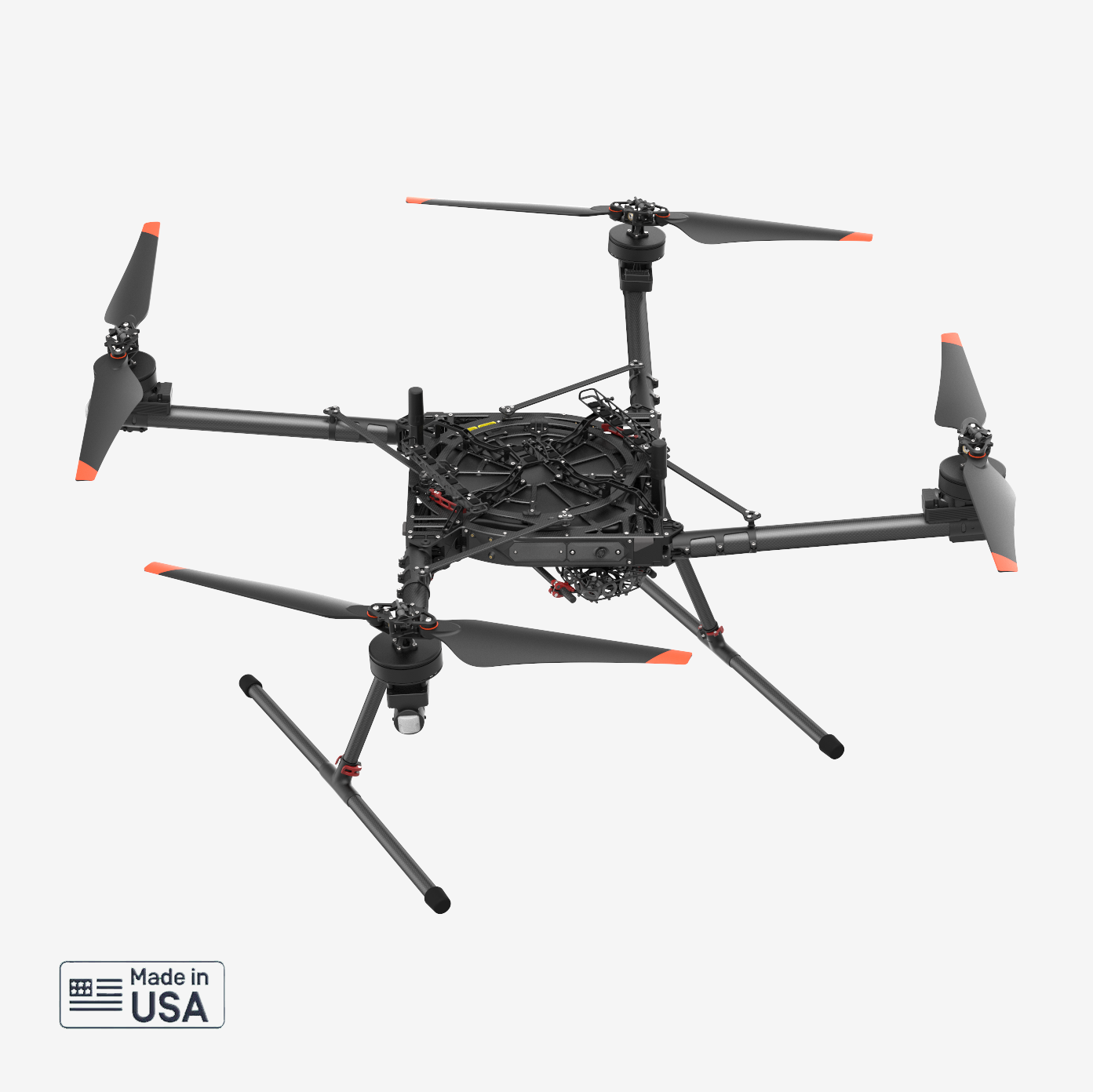

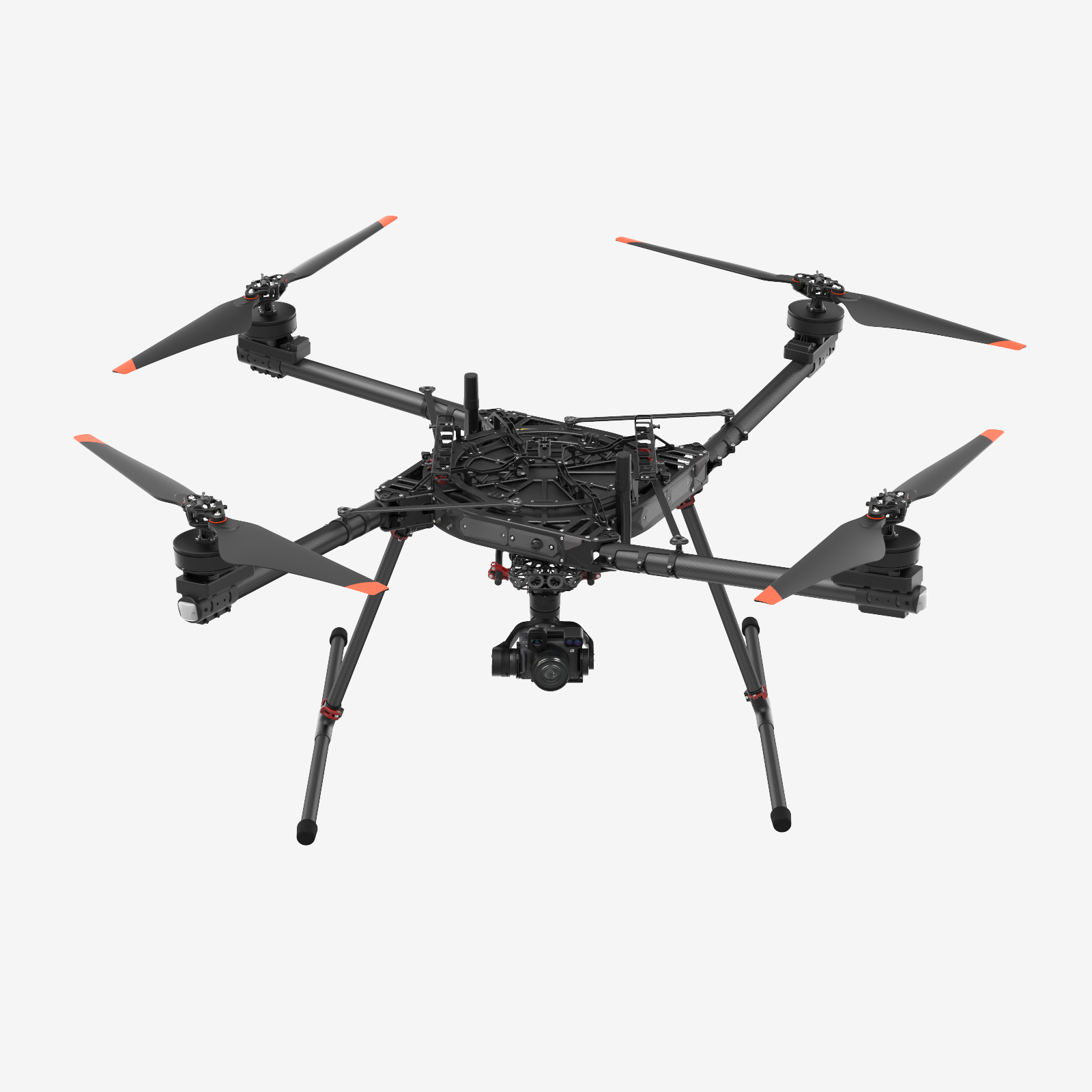

The next evolution of Freefly heavy-lift aircraft is here! The Alta X Gen2 combines the rugged, heavy-lift performance of the Alta X airframe with the cutting-edge flight controller, smart payload interfaces, and seamless workflow integration of Astro Max.

Engineered for professional operators who demand maximum lift, endurance, and flexibility, this new platform delivers:

• Next-Gen Autonomy & Control - Powered by the same custom Skynode in Astro Max for enhanced GPS resilience, precise navigation, and intelligent failsafes.
• 35 lb Payload Capacity - Carry large cinema rigs, advanced sensors, or multiple payloads with stability and precision.
• Smart Dovetail Payload Interface - Quick-connect options for Freefly and a growing field of third-party payloads, with expanded communication and power pathways.
• Industrial-Grade Reliability - Alta X’s proven carbon-fiber frame, weather-resistant design, and rapid field-deployable setup.
• NDAA Compliant Hardware - This version of Alta X Gen 2 (NDAA) uses Doodle Labs hardware for robust and compliant remote control.
• Data-Driven Workflows - Integrated telemetry, mission planning tools, and logging for enterprise and inspection applications.
• Expanded Connectivity and Integration - Leverage the internal payload bay to add custom integrations with onboard Ethernet, regulated payload power, and onboard LTE for remote connectivity.

This is the Freefly system built for the heaviest lifts, the toughest environments, and the smartest missions.

Specs

• Custom Skynode flight controller
• Compatible with Smart Dovetail equipped payloads (LR1 for launch, more to come)
• Preconfigured with Standard Remote ID for FAA compliance

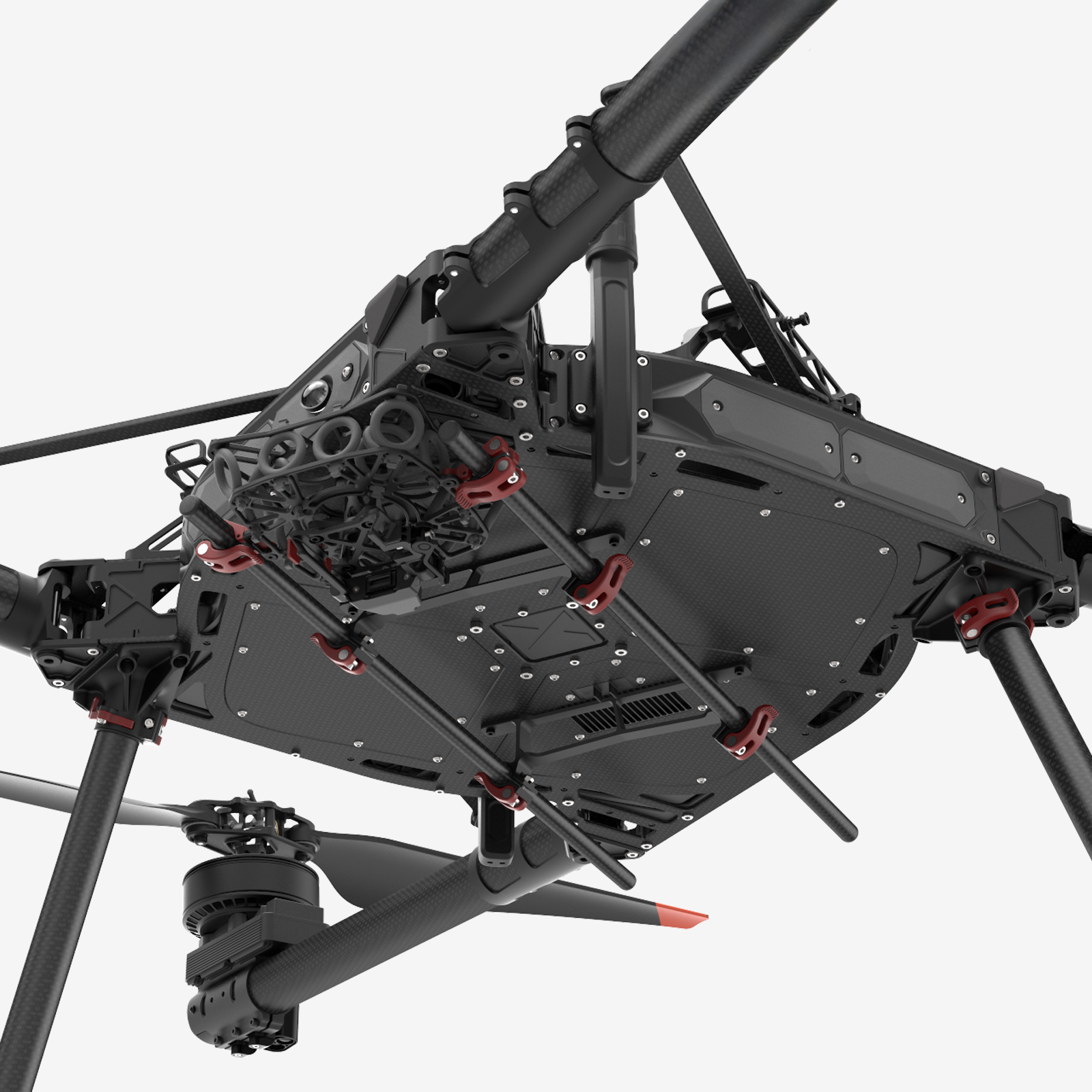

• Removable chassis panels exposes internal cargo bay for integrations
• Upgraded smart batteries (AS150) for better flight time estimation
• Pre-installed accessories to get you flying faster:
  • 12mm Rail Mount for payloads
  • Smart Dovetail with isolated mount suited for LR1 Payload
  • Skid Landing Gear with 380 mm / 14.97" quick release legs
  • FPV camera, viewable feed on Pilot Pro
  • 12V and 24V onboard regulators
• Alta X Gen2 Case that safely transports:
  • Alta X Gen2 with 12mm Rails + Smart Dovetail Mount installed
  • Pilot Pro
  • A set of spare ActiveBlade Props
  • Skid Landing Gear (with medium legs)
• Freefly Pilot Pro Controller (Herelink RF) for precise, robust drone control

In The Box

• Qty 1 - Travel Case
  • Qty 1 - Alta X Gen2 Airframe (Standard Remote ID with props installed)
  • Qty 1 - Extra Bits Kit
  • Qty 1 -  AS150U Fused adapter for safe bench configuration
  • Qty 1 - Skid Landing Gear (380 mm / 14.97" legs only)
  • Qty 1 - 12mm Rail Kit
  • Qty 1 - Smart Dovetail with isolated mount for LR1
  • Qty 1 - Pilot Pro Controller (preconfigured for Alta X Gen 2 with Doodle Labs radio)


Does not include

For maximum versatility for a variety of operators, Alta X Gen2 does not include batteries/chargers. We recommend:

• At least one dual channel charger* plus six Alta X Gen2 batteries*, per aircraft. If you cannot charge in the field and need to operate more than three flights, add one pair of batteries per flight hop planned. Each charger can charge two batteries at a time, and adding additional chargers will speed up your overall charting throughput.
