Overview

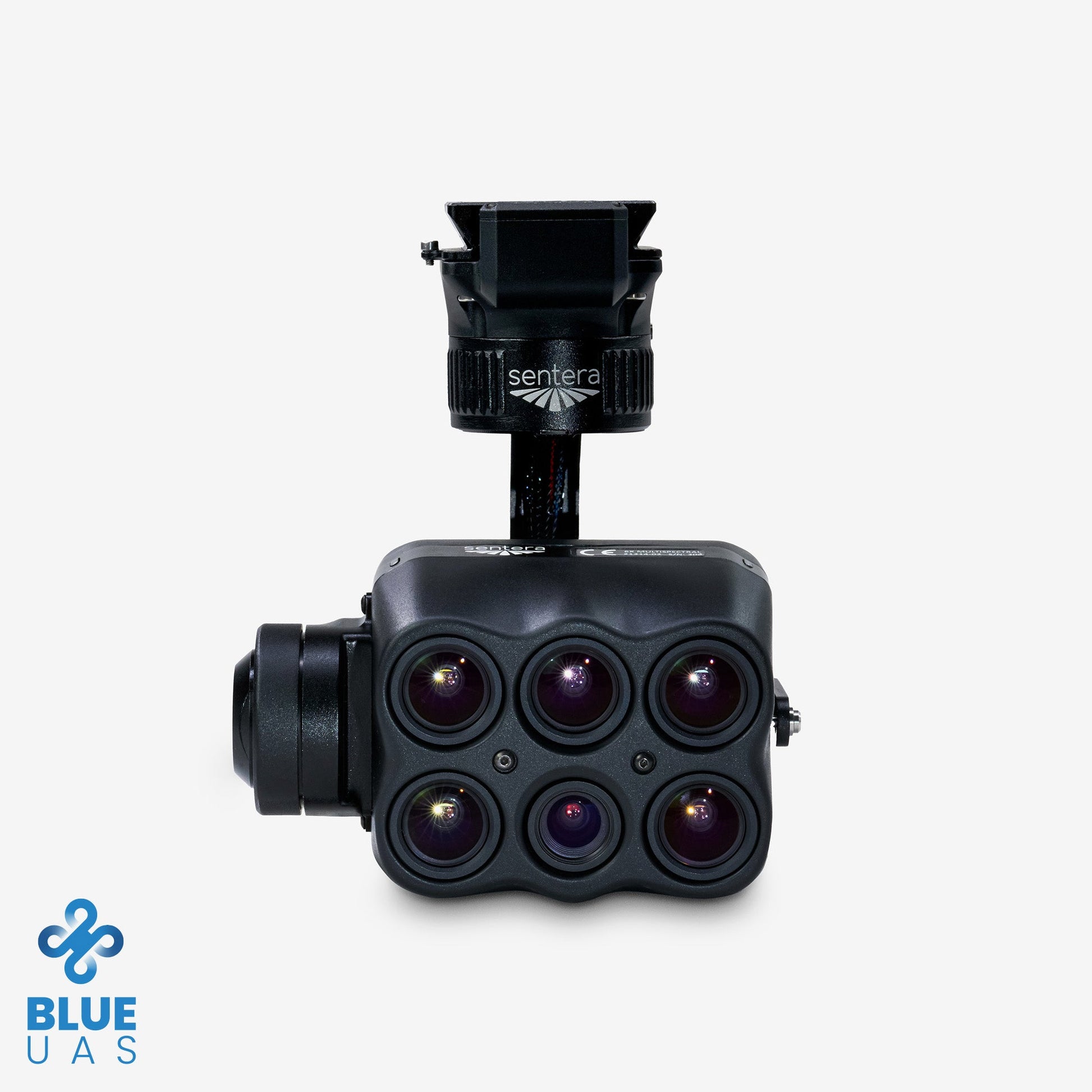

Experience the ultimate solution for capturing synchronized high-res RGB and accurate radiometric multispectral imagery with the Sentera 6X Sensor.

With gimbal stabilization and ample 512GB internal storage, this sensor offers unrivaled performance and value, making it the perfect choice for longer flights and larger coverage areas. Trust the 6X to deliver exceptional results for every project.

Features

• 5 3.2MP Multispectral Sensors
• 20MP RGB Sensor
• 5 FPS image capture
• Internal IMU
• Freefly Smart Dovetail Quick-Release

• NDAA compliant and DIU approved

Sentera PN: 21930-02

Tech Specs

Image Sensors

• Five Multispectral Sensors
  • 3.2MP
  • Global Shutter
  • GSD at 120m/400': 5.2cm/13.9"
  • 104mx76m FOV
  • Spectral Bands*
    • Blue (475nm center, 30nm bandwidth)
    • Green (550nm center, 20nm bandwidth)
    • Red (670nm center, 30nm bandwidth)
    • Red Edge (715nm center, 10nm bandwidth)
    • Near-IR (840nm center, 20nm bandwidth)
• Single RGB Sensor
  • 20MP (Sony IMX147)
  • Rolling Shutter
  • GSD at 120m/400': 5.2cm/13.9"
  • 104mx76m FOV
• 5 FPS Sustained Capture Rate
• Synchronized and Aligned Image Capture

Storage

• 512GB Internal SSD

• MicroSD (logging data)

Interfaces

• Freefly Smart Dovetail (on lightweight gimbal)
• USB-C
• Gigabit Ethernet

Dimensions (with with gimbal) 557.6

• Weight: 511g

In the Box

• Travel Case w/ Custom Foam
  • 6X Multispectral Sensor
  • Gimbal with Smart Dovetail
  • Incident Light Sensor & GPS
  • Calibrated Reflectance Panel
  • Light Sensor Mounting Kit
  • 10ft USB-C Cable
  • AC Wall Power Adapter
  • Right Angle USB-C adapter
