NanoGCS

NanoGCS

$1,699.99 USD
$1,699.99 USD
Sale Sold out
Frequency
Antenna

NanoGCS Unit

  • Pocked-sized module containing the Doodle Labs NanoOEM Radio
  • Smallest and easiest way to connect to a Doodle Mesh Rider network

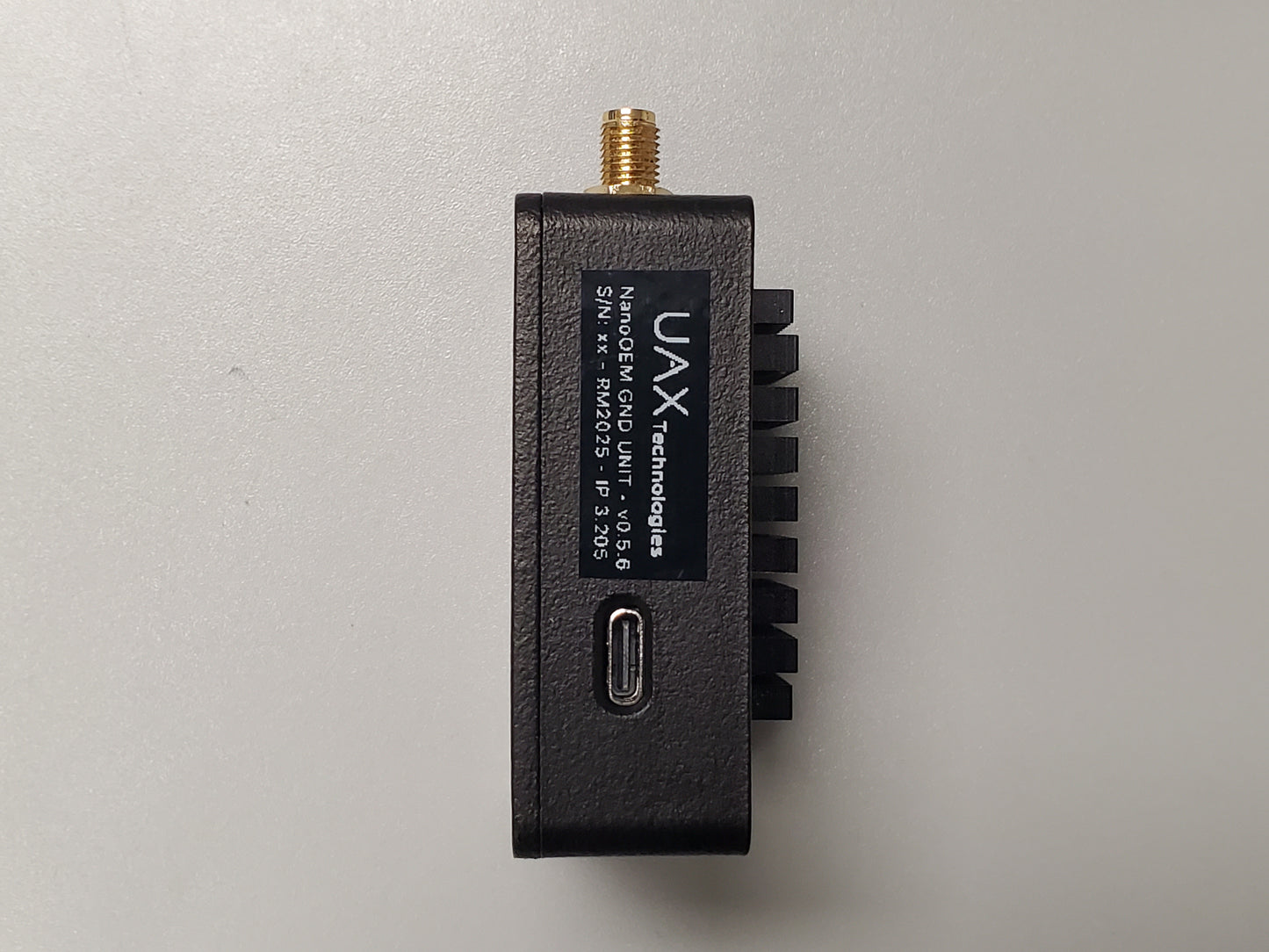

  • Single USB-C connection for data and power
  • Single SMA connector for antenna

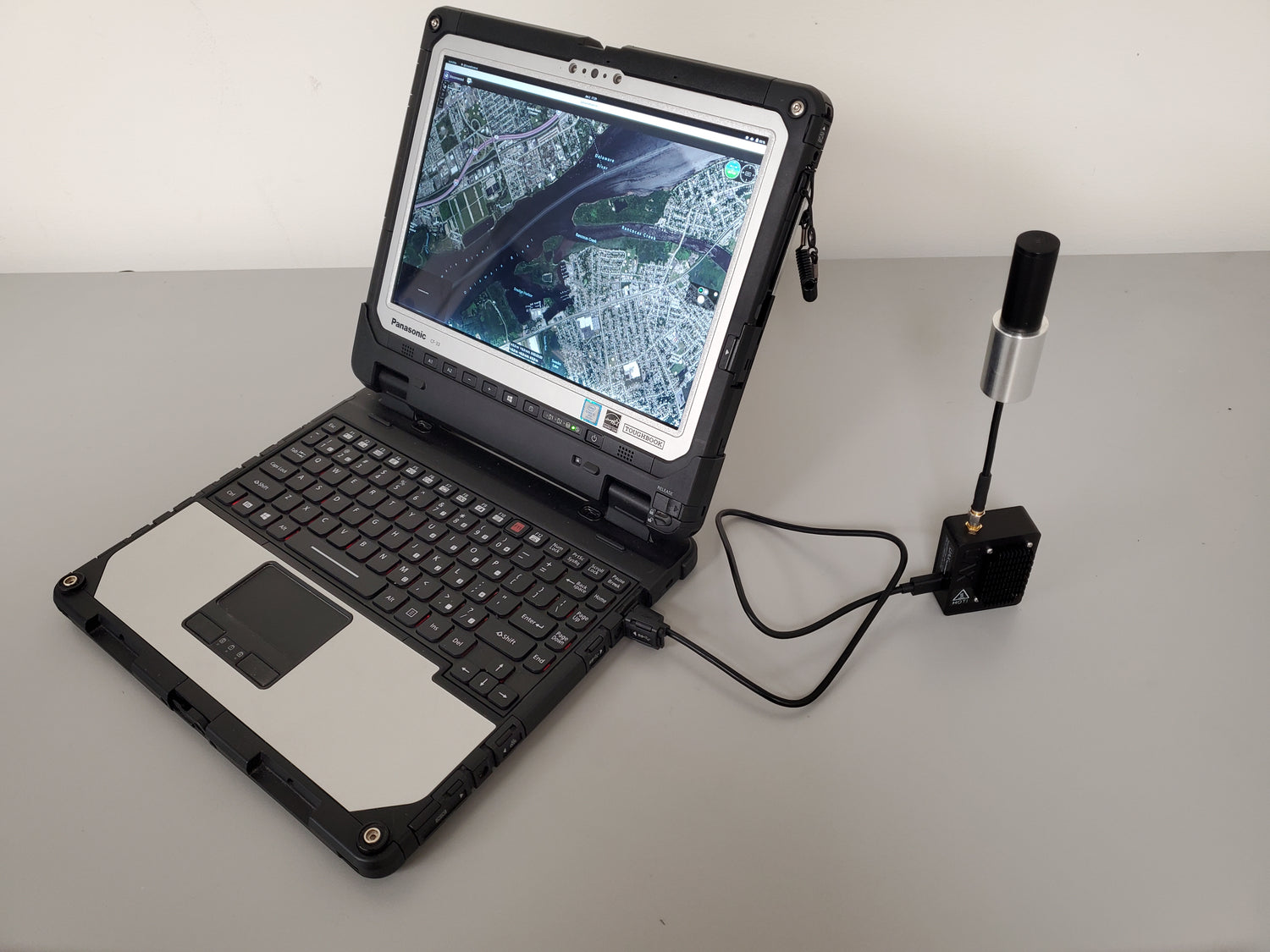

  • Powered by USB from a laptop or tablet

Please select a radio variant.

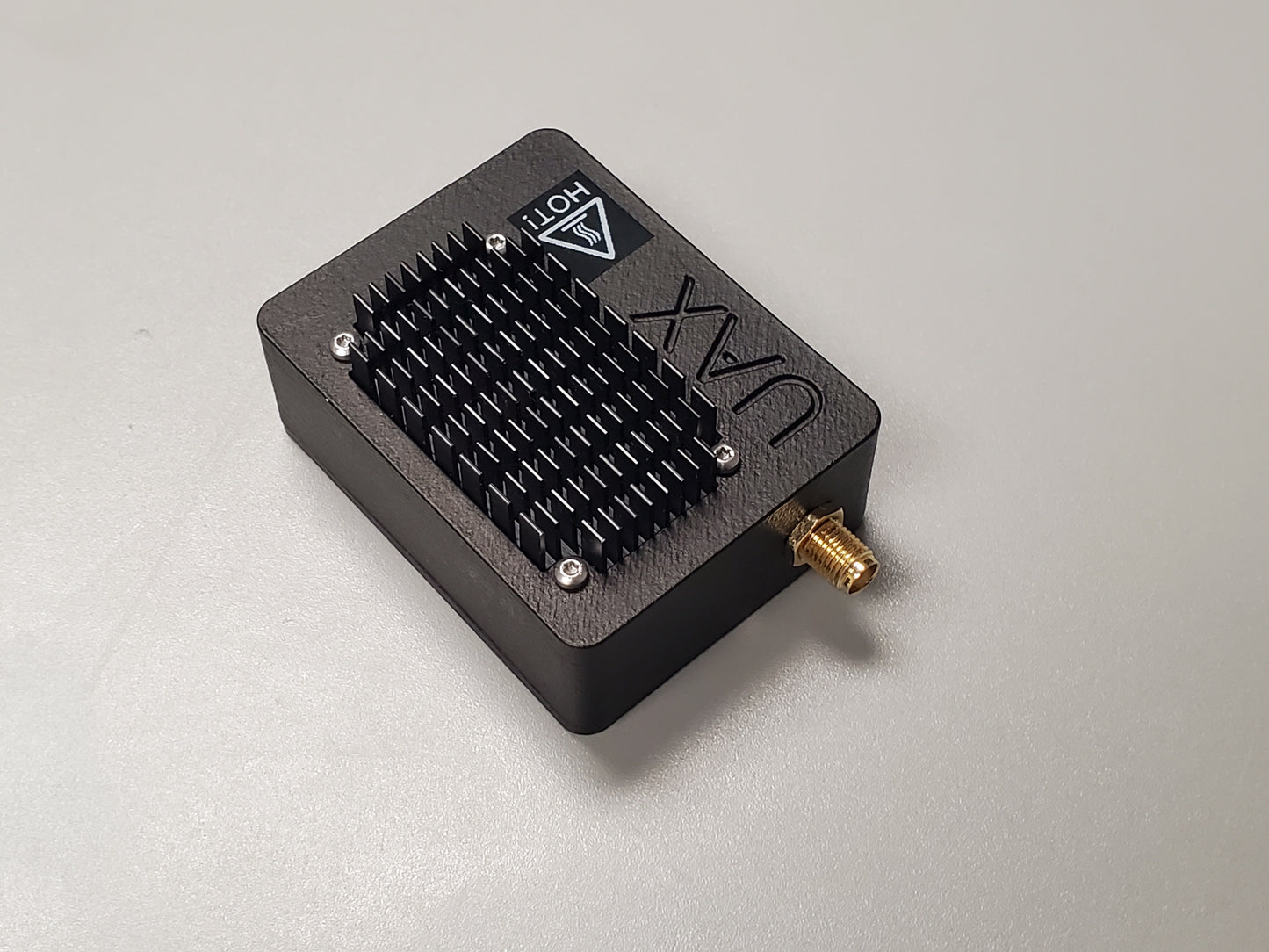

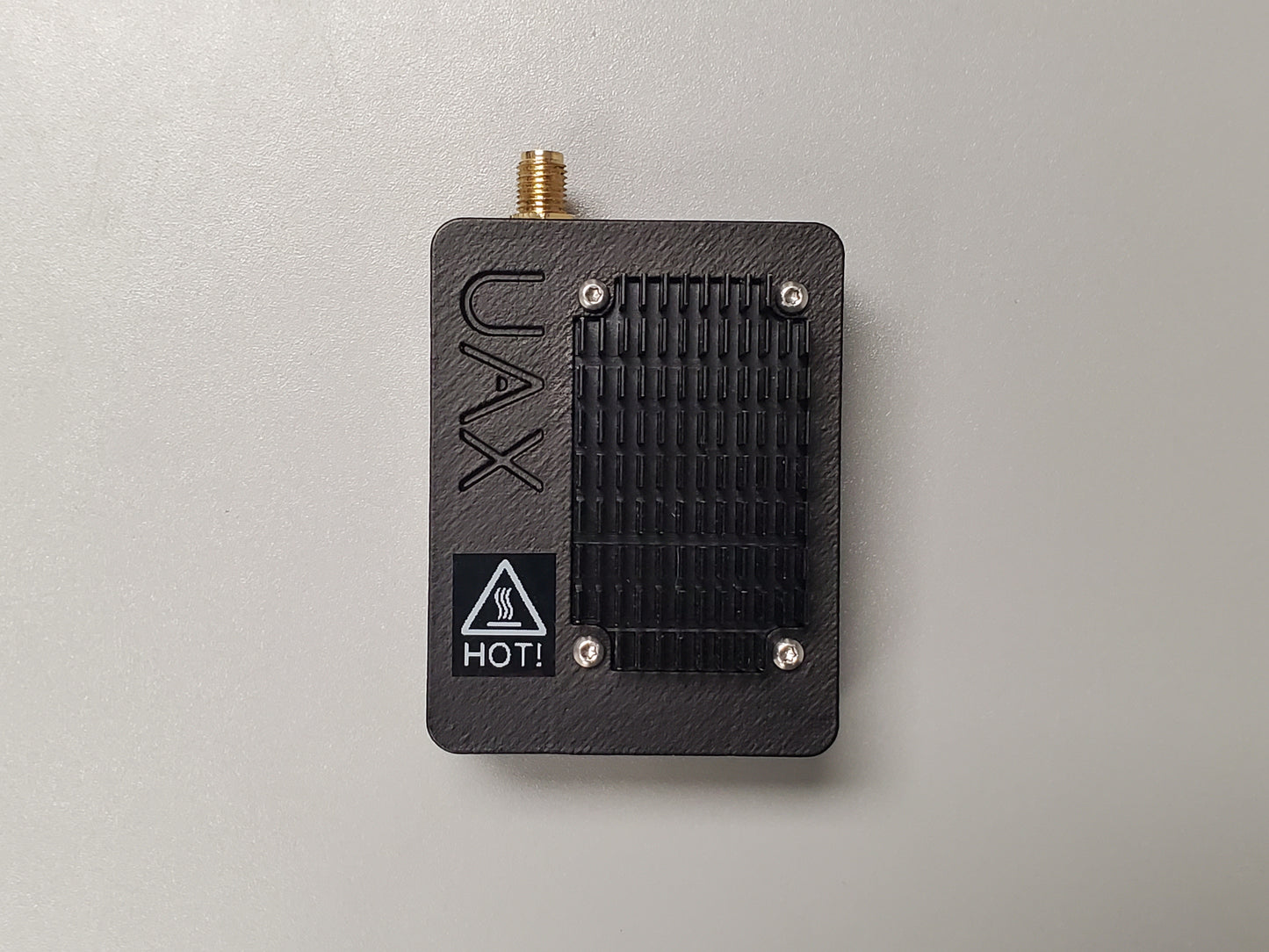

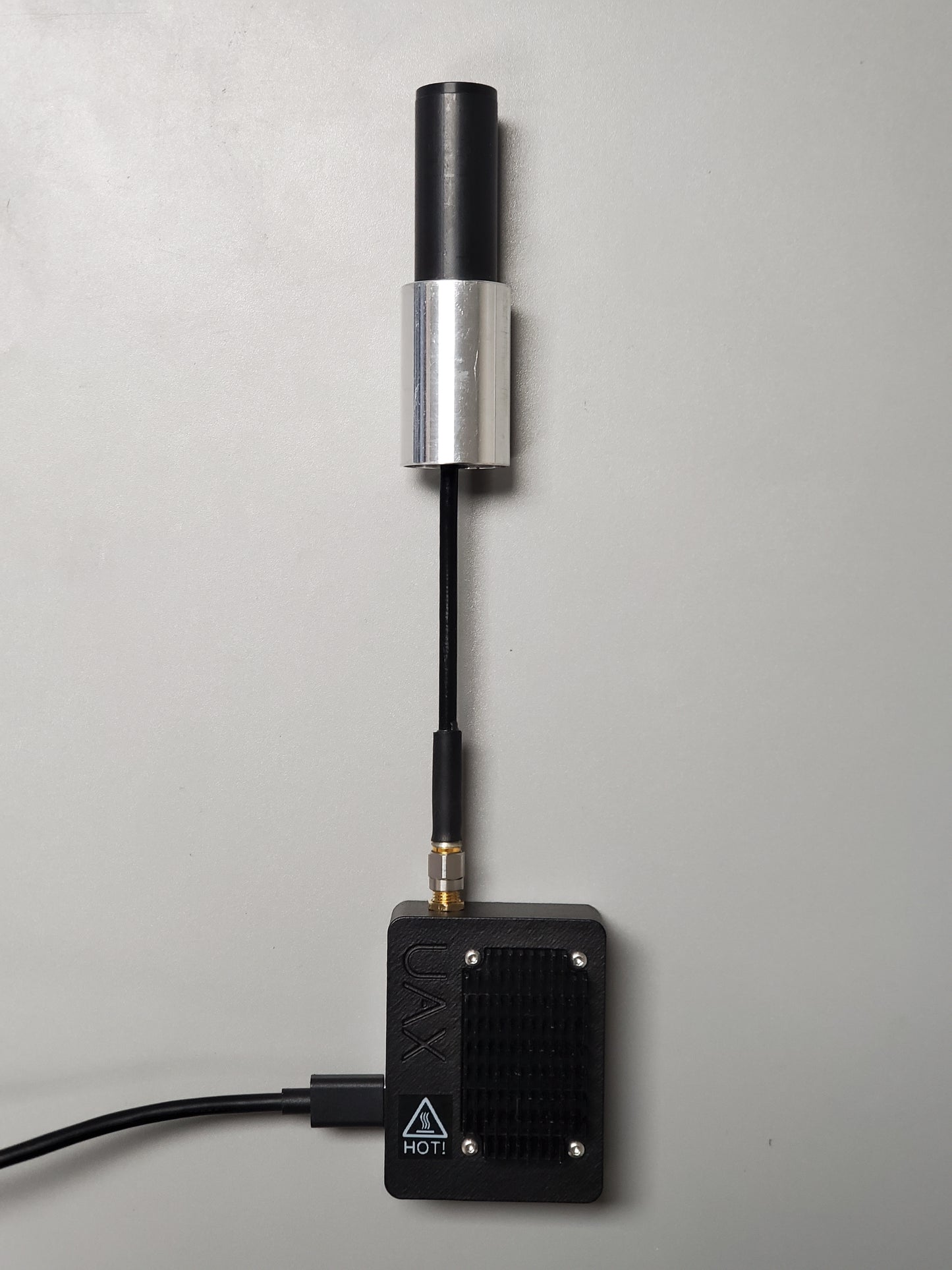

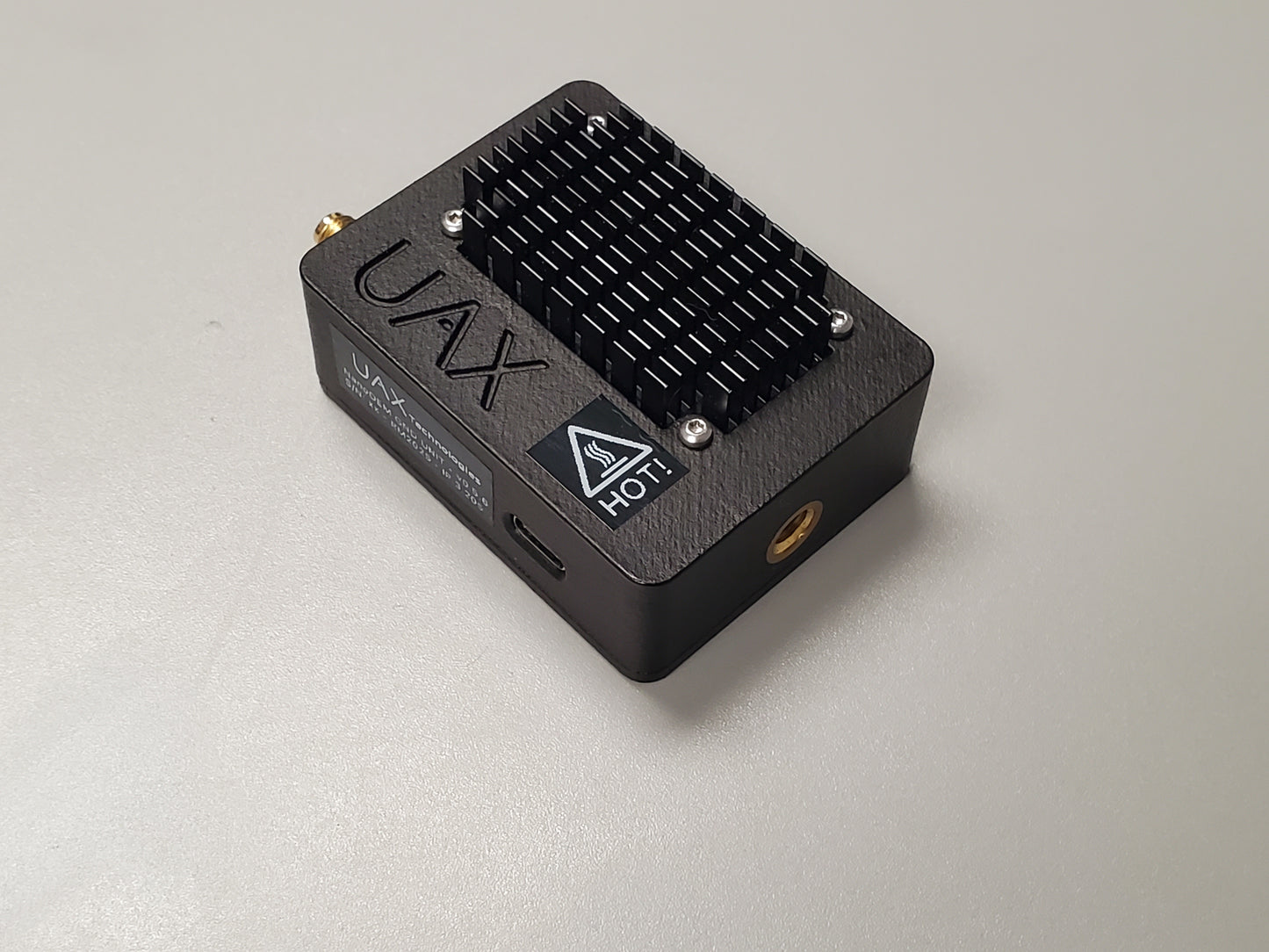

NOTE:  The pictures show the 2025 variant with the omni-directional antenna.

    Power Requirements

    The USB host device must be able to supply a peak of 1.6A at 5V

    Dimensions

    • Length: 7.5cm (including antenna connector)
    • Width: 5cm
    • Height: 3cm (including heatsink)

    Antennas

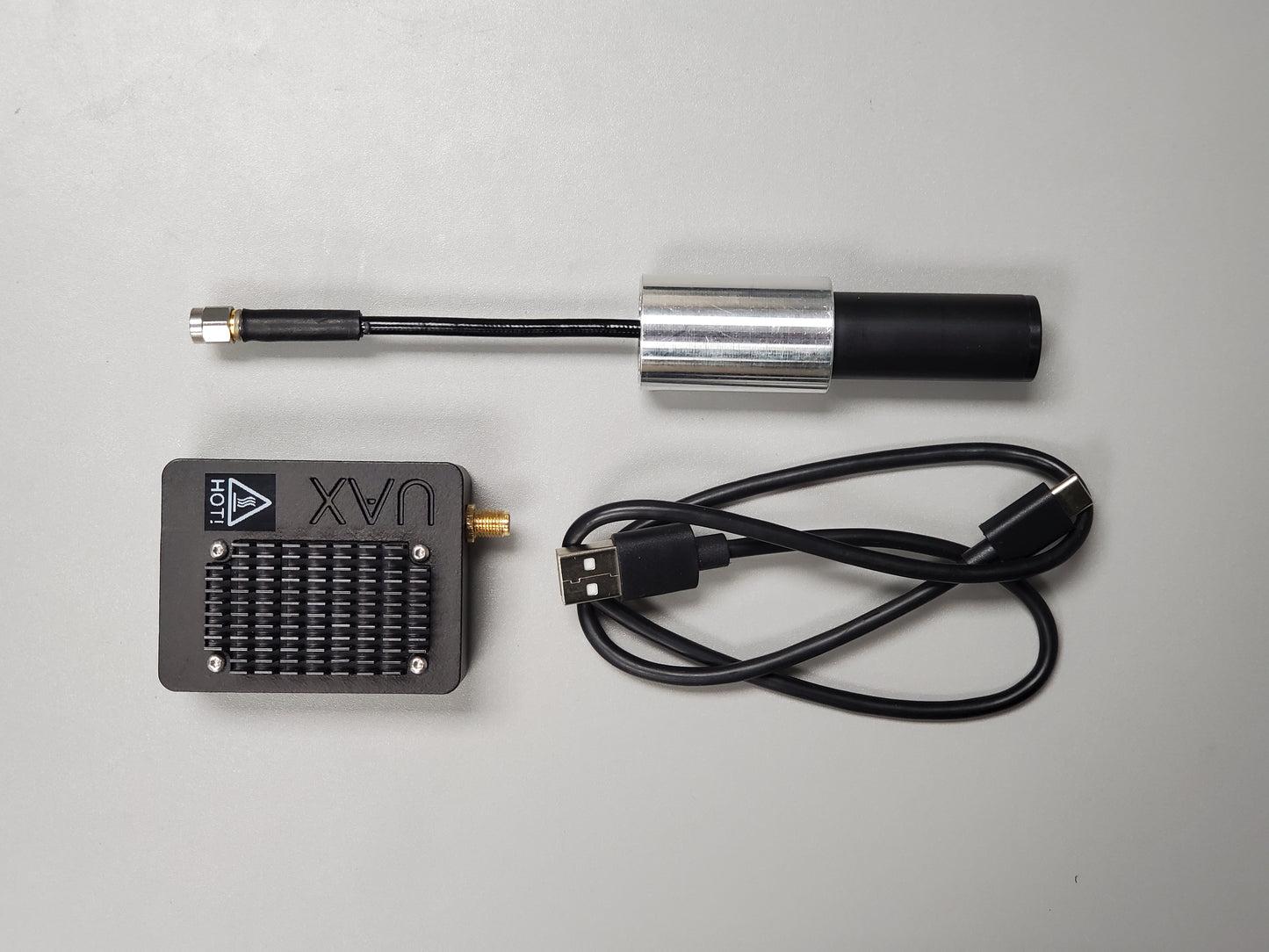

    The unit can be ordered with or without an omni directional antenna. Directional antennas can be found in our store or contact us for more options.

    Shipping

    The units are currently build to order. Lead time is approximately 3 weeks.

    Warranty

    The unit has a one year warranty. Contact us for information about additional warranties or guarantees by regional legislation.

    View full details

    Unleash the Power of Mesh Rider

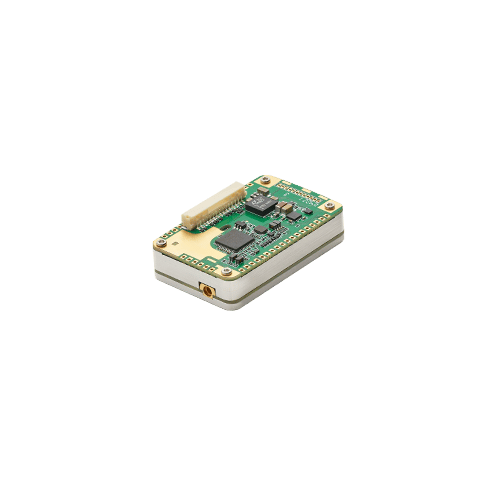

    A powerful Doodle Labs NanoOEM module is at the heart of the NanoGCS. The radio offers the following features:

    • NDAA Compliant
    • Mesh networking
    • High Throughput for Multiple Video Streams
    • Low Latency Command and Control Prioritization
    • AES-128/256 Bit Encryption

    Simplified Operations

    A single connection for Data and power means the NanoGCS is ready to work anytime. No batteries, chargers, or adapters.

    Adaptable

    • Tripod Mount

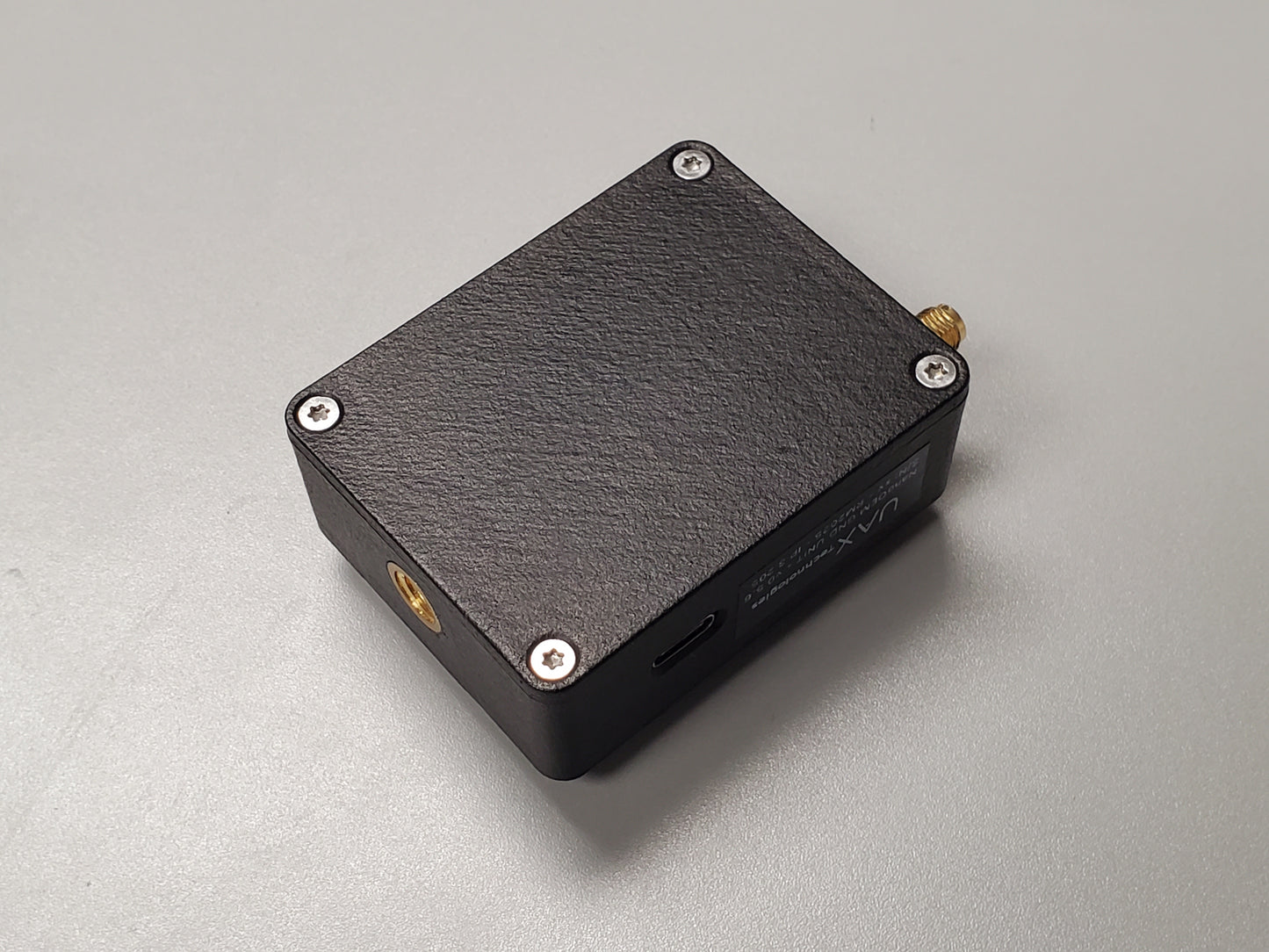

      A 1/4"-20 tripod mount on the under side makes the unit compatible with a variety of mounts already on the market. Tripods, suction cups, magnetic mounts, clamps, etc.

    • Attach Anywhere

      The small and light nature of the NanoGCS makes it possible to attach it almost anywhere.

    • Expand Existing Devices

      The NanoGCS can be used to add long-range mesh networking to an existing system in under one minute.
