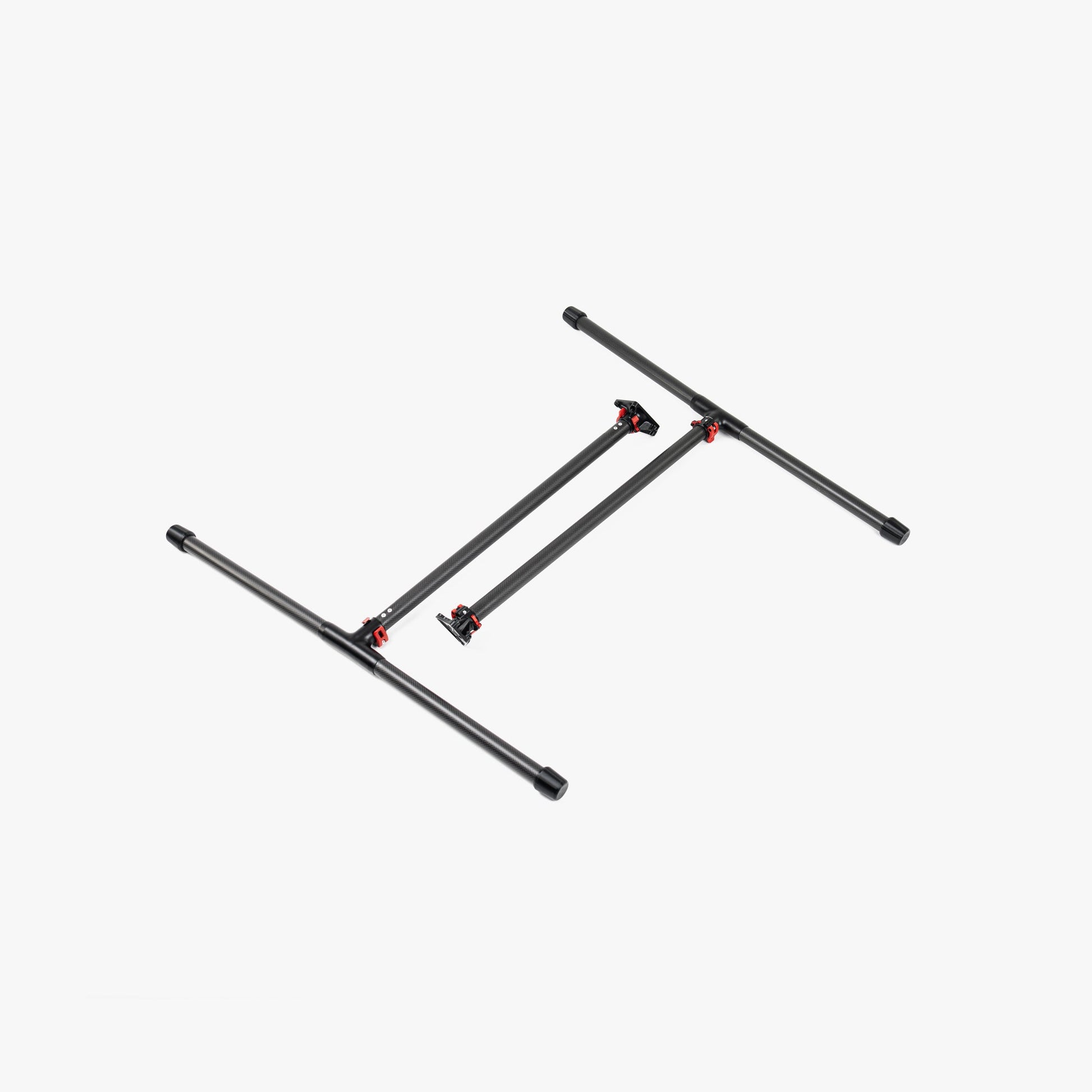

Alta-X Skid Landing Gear

Upgrade your Alta X setup with the Skid Landing Gear, specially designed to support a wide range of third-party payloads.

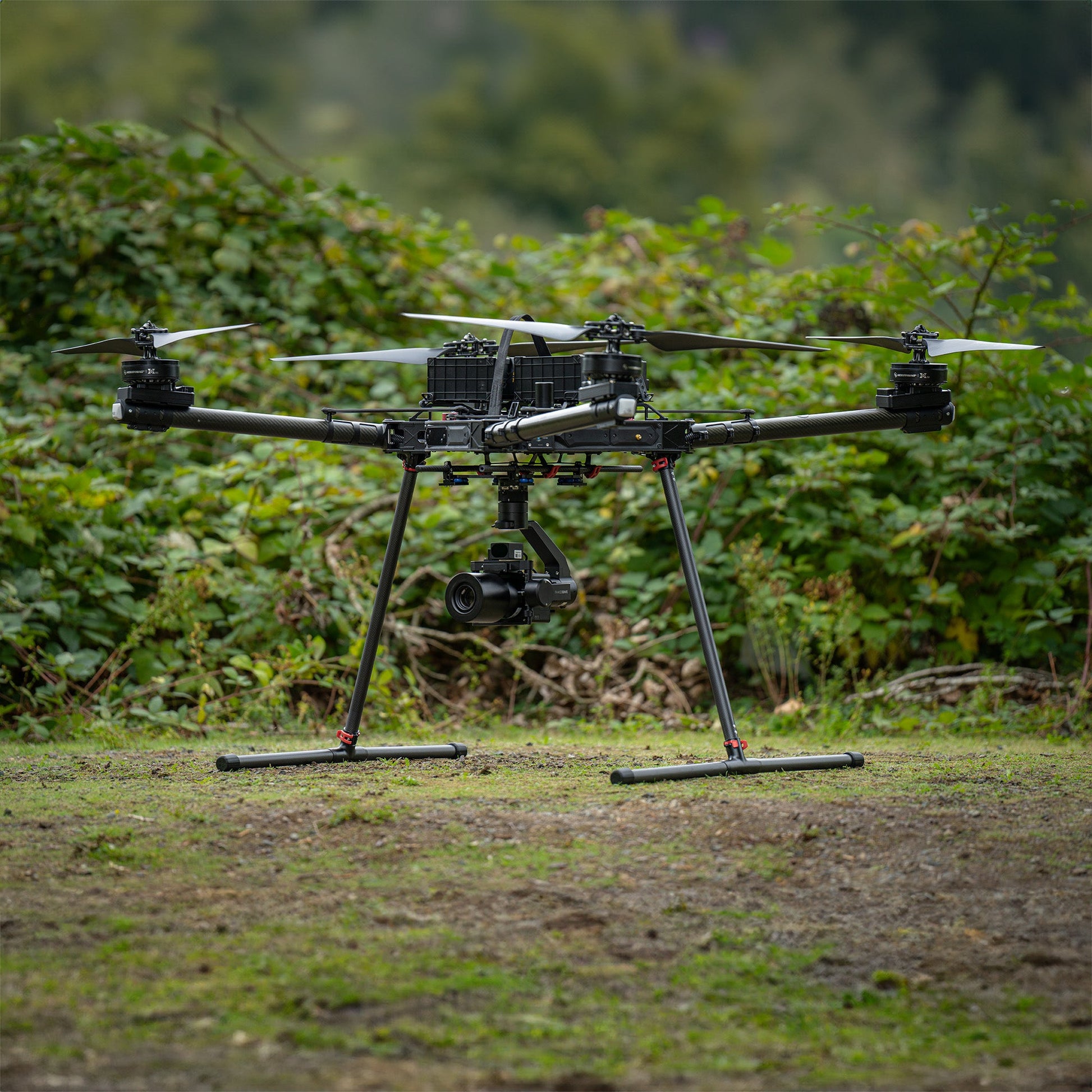

Whether you’re working with high-end sensors, cameras, or custom-built attachments, this landing gear provides a stable and secure platform for smooth landings and takeoffs in any environment.

Features

• Optimized for Third-Party Payloads - Designed to accommodate a variety of non-Freefly payloads under the Alta X*.
• Robust and Lightweight - Made from carbon fiber and aluminum for maximum strength in landing with minimum weight in the air.

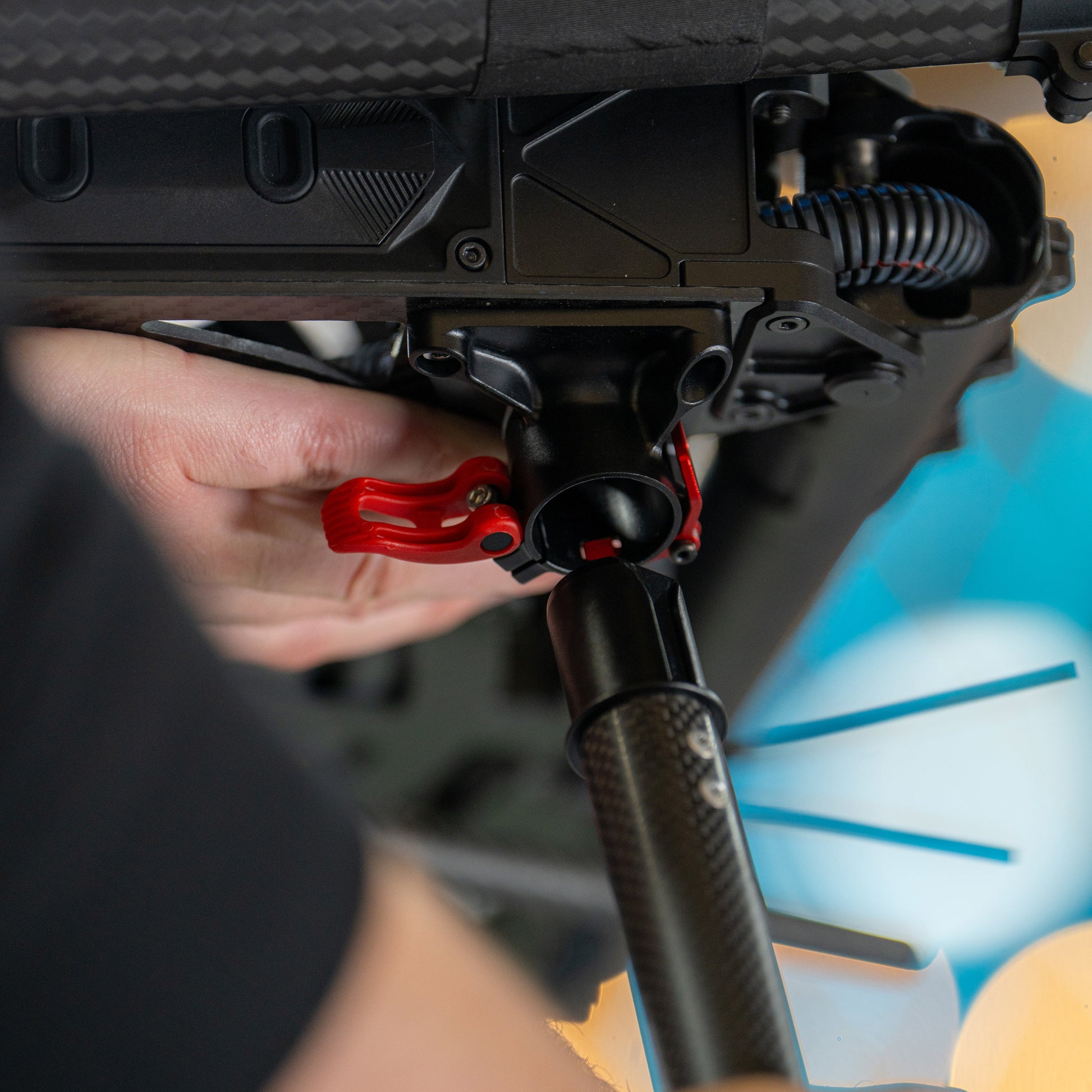

• Quick and Easy Installation - Designed for a hassle-free tool-less setup on site, allowing you to focus more on the mission and less on assembly.
• Variable Ground Clearance - Two sets of legs give you the option for just the right amount of clearance to protect sensitive equipment during landings, even on uneven surfaces.

Specs

• Machined aluminum and carbon fiber
• Dual locking mechanisms for redundancy and security
• Keyed leg hardware for consistent and secure positioning
• Comes with required hardware and tools for initial installation of chassis mounts
• Two sets of legs for optimum ground clearance from the bottom of the chassis
  • Medium Legs:
    • 18.2" / 462 mm
    • 28 oz / 780 g
  • Long Legs:
    • 23.35" / 593 mm
    • 29 oz / 826 g

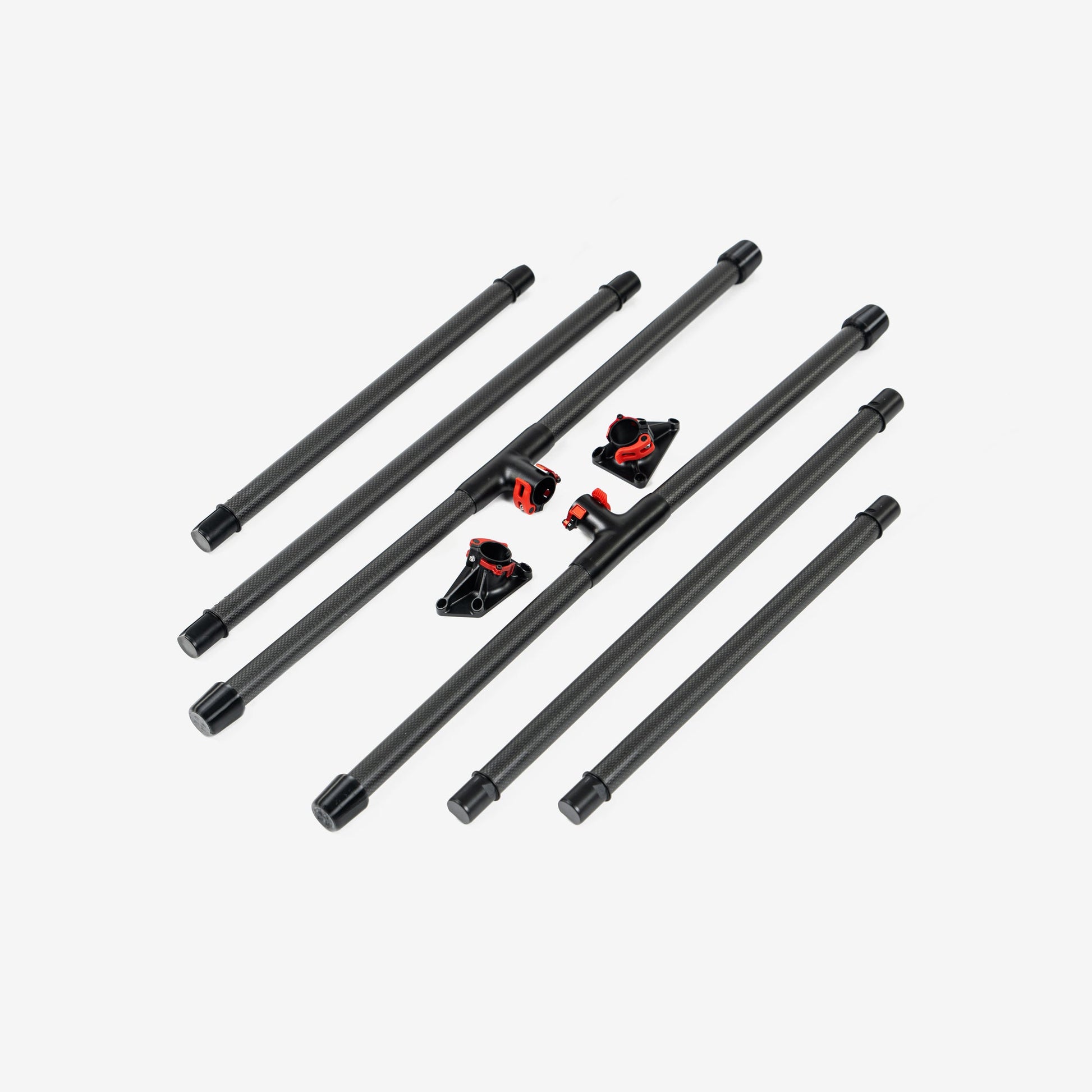

In The Box

• Qty 2 - Bottom skids with end caps (737 mm)
• Qty 2 - Medium Legs (380 mm / 14.97")
• Qty 2 - Long Legs (520 mm / 20.47")
• Qty 2 - Quick-release mounts for Alta X chassis
• Qty 8 - M4 x 18 SHCS Dacromet screws
• Qty 1 - Hex Driver (3 mm)
• Qty 1 - Torque Driver (3.0 Nm)
• Qty 1 - Loctite 243 Threadlocker, 0.02 oz
