Freefly Systems
Alta X + Pilot Pro
Alta X + Pilot Pro
Regular price
$32,495.00 USD
Regular price
Sale price
$32,495.00 USD
Unit price
per
Couldn't load pickup availability
Overview
-
- Designed for industrial operators adding their own landing gear, payloads
- Formerly 950-00118-06 (which did not meet Standard Remote ID standards)
- Ships in the Alta X Travel Case
- Is RTK ready: just needs the addition of a ground station computer and RTK Ground Module (instructions for setup)

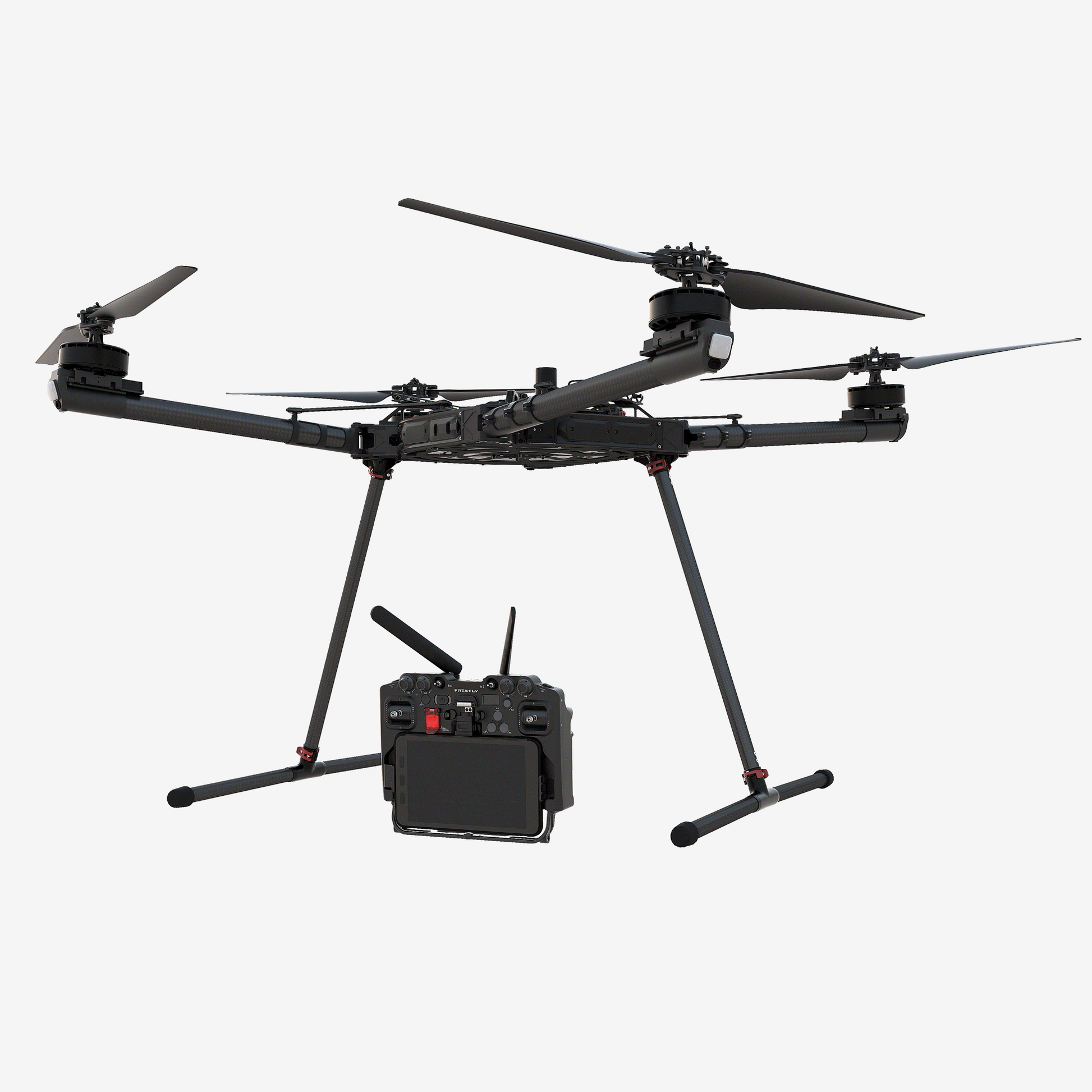

- Includes Freefly Pilot Pro Controller (Herelink RF) for precise, robust drone control
- Does not include:
- Landing Gear and Payload Mounts*
Alta X (Travel Case, Not Gimbal Ready, Pilot Pro + Herelink RF) - 950-00150-01
- Qty 1 - Alta X Travel Case

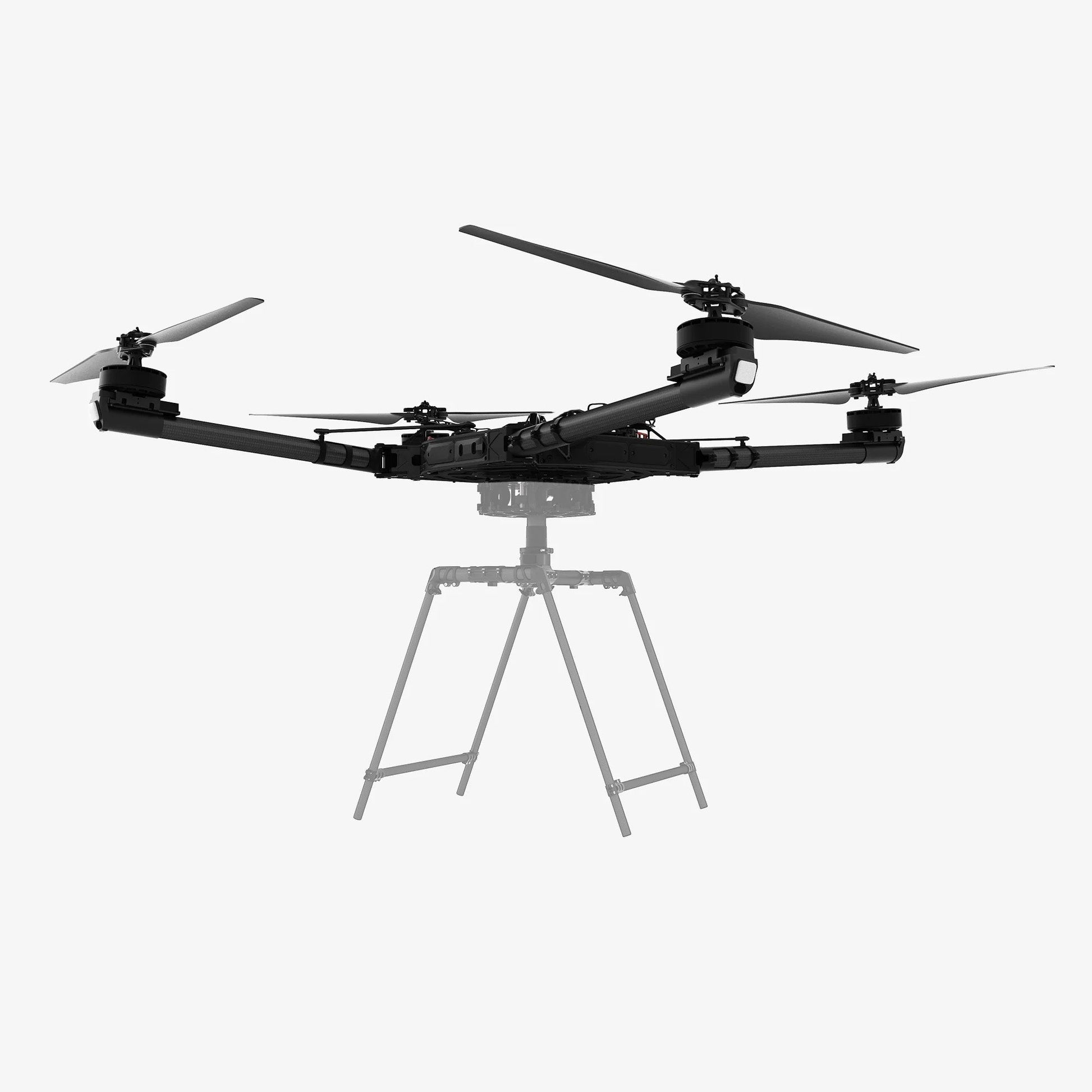

- Qty 1 - Alta X Airframe with F9P GPS (RTK Ready) with Standard Remote ID
- Qty 1 - Spare parts kit
- Qty 2 - Fuse Mini 297 32V 10A
- Qty 2 - Replacement Battery Strap
- Qty 2 - Active Blade Bumper (black)
- Qty 2 - Active Blade Bumper (gray)
- Qty 5 - M4x16 Combo Head bolt
- Qty 5 - M4x10 Combo Head bolt
- Qty 5 - M3x8 Combo Head bolt
- Qty 5 - M4x14 Combo Head bolt
- Qty 5 - M4x8 Combo Head bolt
- Qty 1 - USB C to A Cable (1m)
- Qty 1 each - 2.0mm, 2.5mm and 3mm hex drivers
- Qty 1 - Pilot Pro Travel Case
- Qty 1 - Pilot Pro Controller with Herelink radio link)
-
Capabilities
Performance Specs- Max Endurance: 50 min
- Max Altitude: 10,000 feet
- Range: limited by RFD-900x
- 12.5lb payload limitation for 55lb MGTOW
- Additional capacity for 35lb payload
- Modular payload mounting system
- All weather
-
What makes the Alta X special?
- Alta X folds to half its normal size with the push of a finger. The folding linkages stiffen the booms to ensure low vibration and precise flight characteristics
- Alta X ActiveBlade design reduces vibrations to 1/5th of the normal level
- Reduced vibrations means lower fatigue on components, longer motor bearning life, less payload vibration for cleaner collection of data, and better footage when shooting
Additional Information
Aircraft Dimensions
- Unfolded Diameter (not including props): 1415 mm
- Unfolded Diameter (Including Props): 2273 mm
- Folded Diameter: 877 mm
- Height: 387 mm
- Height (Skyview): 434 mm
Aircraft Powerplant
- Number of Motors: 4
- Motor Max Continuous Power Output: 100 A
- Motor Max Instantaneous Peak Power Output: 130 A (>3s)
- Equivalent Kv: 115 rpm/V
Propellors
- Model: 33x9in
- Material: Carbon fiber filled Nylon
- Propeller Orientation: (2) CW and (2) CCW Props
- Propeller Type: 40 x 230 mm Folding
Weights
- Maximum Gross for Takeoff: 4.86 kg / 76.85 lb (see performance charts)
- Maximum Payload: 5.06 kg / 33.20 lb
- Typical Standard Empty weight: 0.86 kg / 23.94 lb
Flight Controller
- Autopilot Name: Blue Cube
- Flight Modes: Manual, altitude, position, mission, loiter, orbit, return
- Default Data Logging Rate: Varies, 25hz for main flight data
- Optional Zero-Logging to meet operation needs
Battery
- (2x) 16AH 12S Flight Pack
- Nominal Battery Voltage: 44.4V
- Battery Connectors: XT-90
- 15 C Discharge Rating
